Forthing T5 HEV – Smooth and Efficient Hybrid SUV Featuring Turbo Power and Intelligent Driver Support Technologies

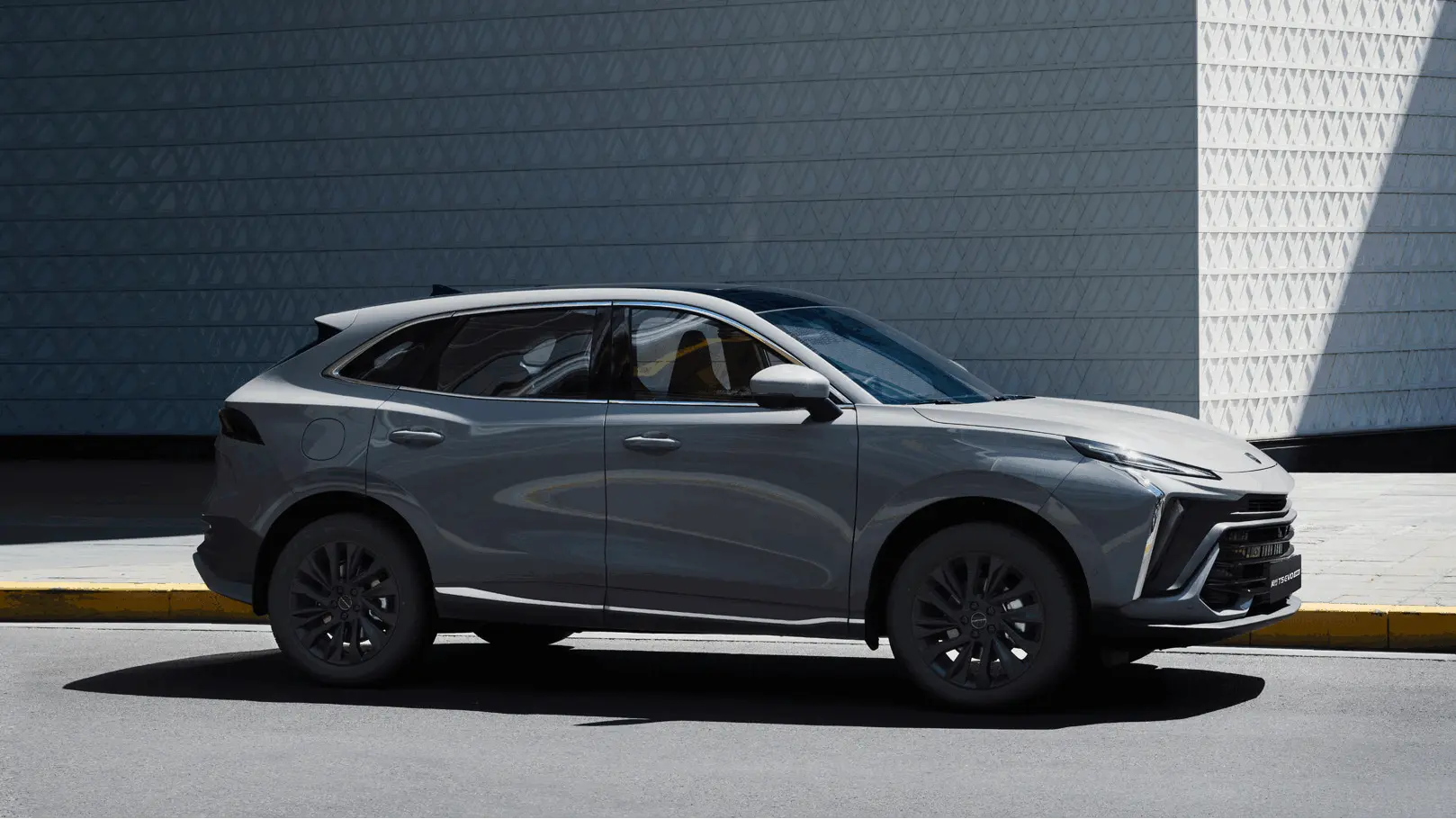

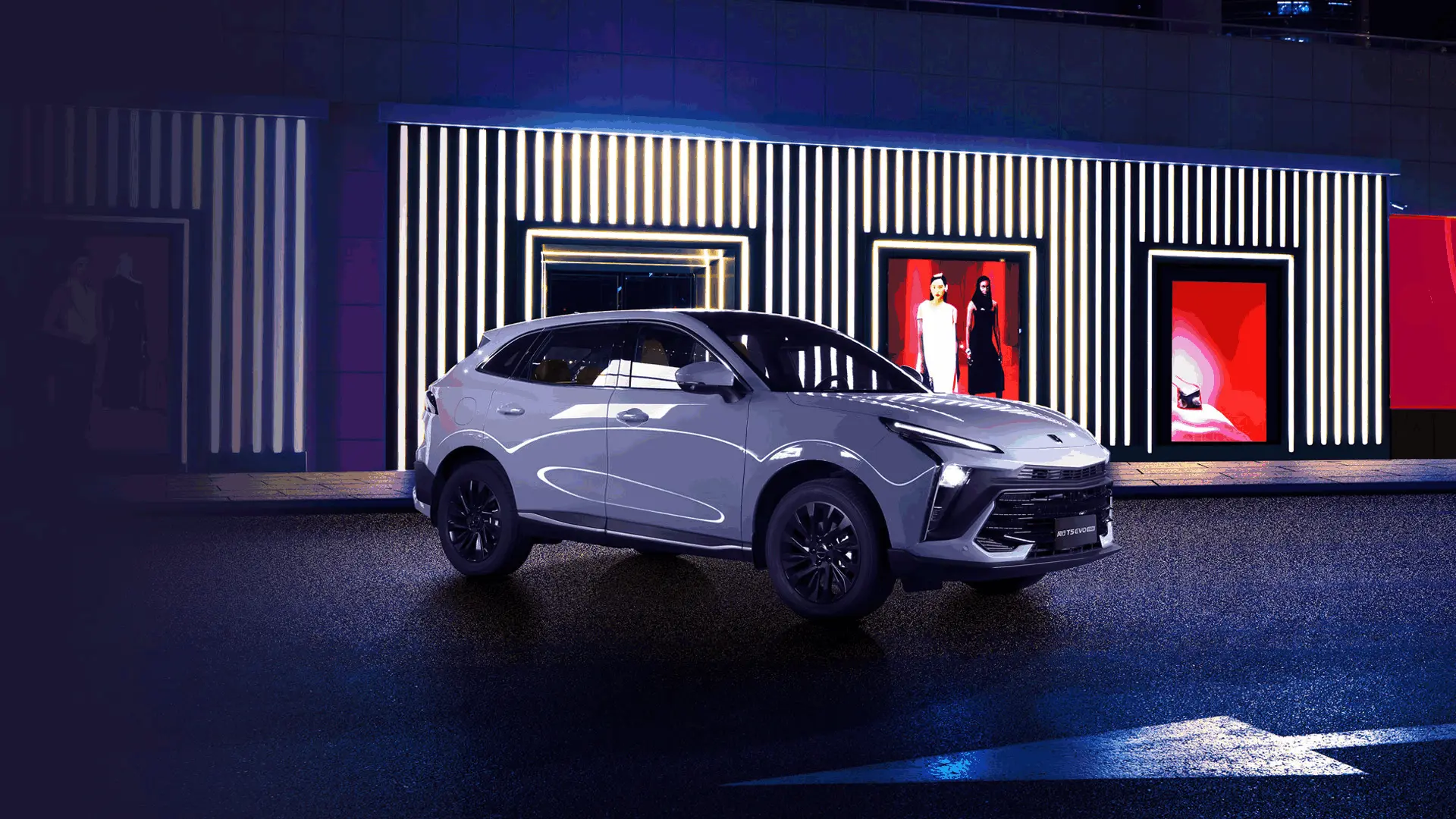

Forthing T5 HEV adopts a new front dynamics design, with 19-inch wheels, jumping power. From the side, the new car's overall shape is stylish and sporty, quite a coupe-style SUV style.

product details

Parameters

Product Information

7 Jan 2019

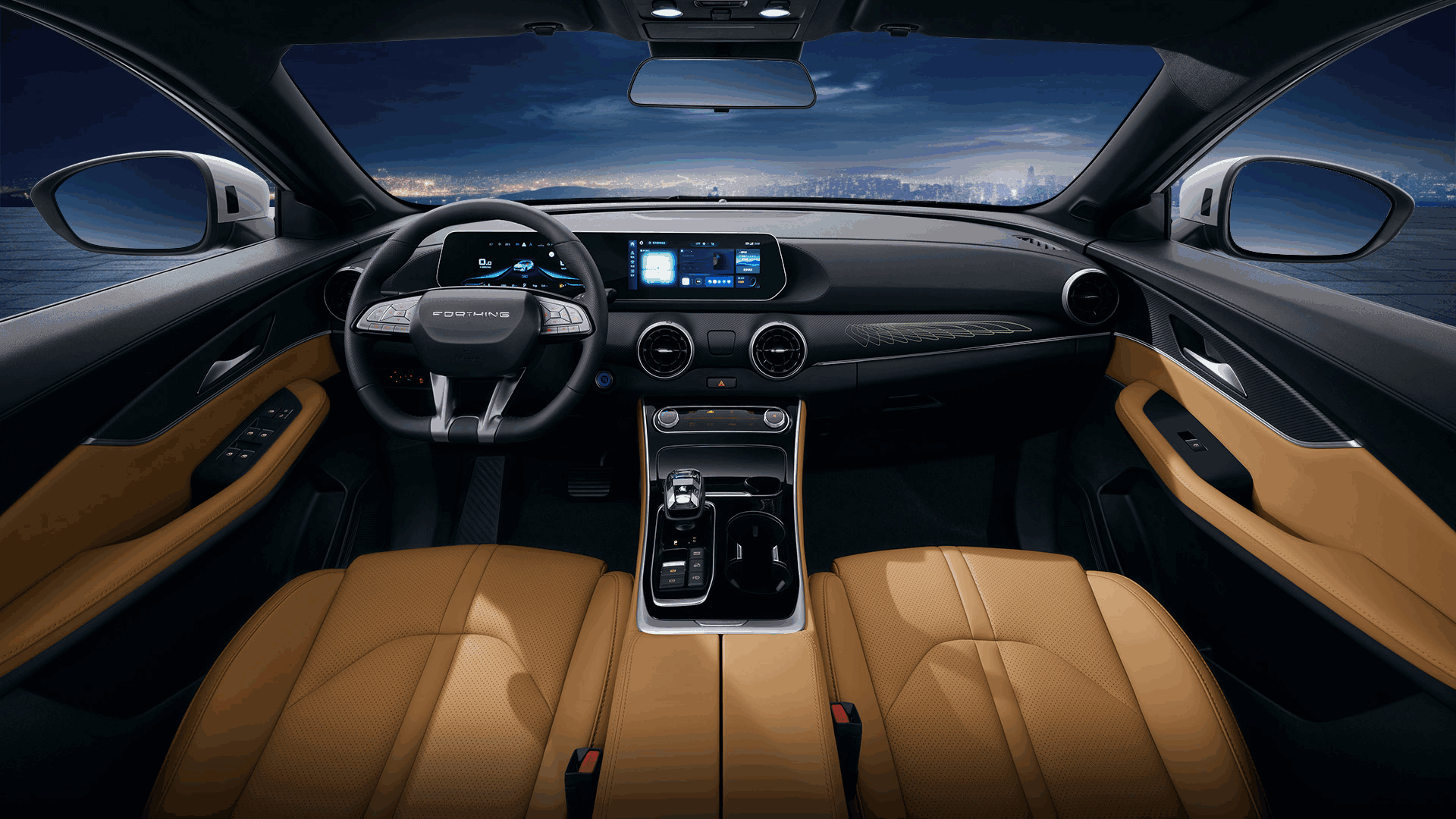

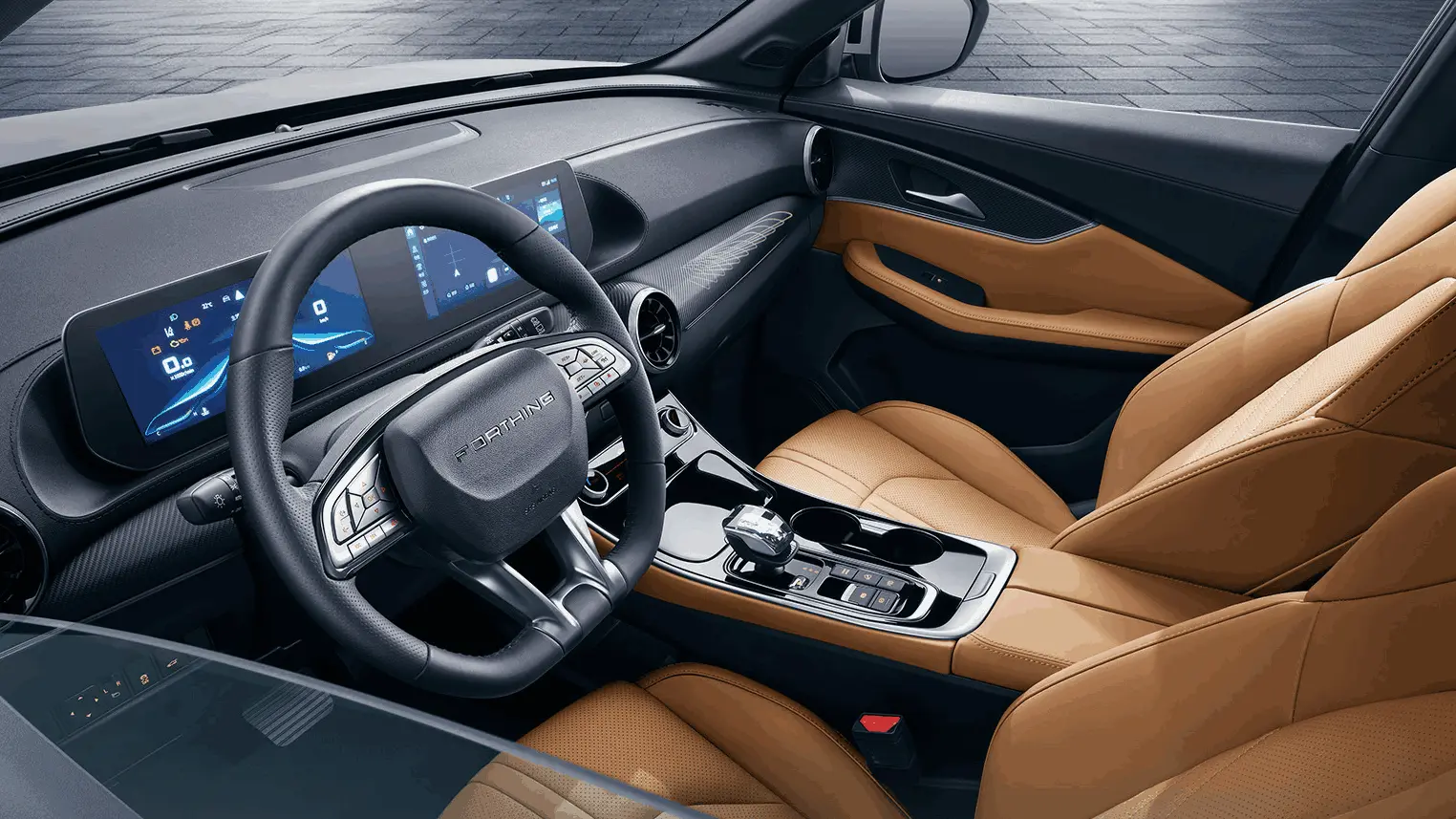

As for the interior, the new car is paired with orange leather seats as a whole, creating a sporty, youthful visual effect along with a lot of curved elements. The air conditioning vents of the new car are round in shape, equipped with a faux carbon fiber texture panel, which looks quite sporty. The multifunctional steering wheel is embellished with chrome decorations, and its metallic visual effect creates a starker contrast with the leather package, making it more recognizable.

7 Jan 2019

Forthing T5 HEV is equipped with a 1.5T engine, of which the normal version has a maximum power of 145 kW and a maximum torque of 300 Nm.

Forthing T5 HEV adopts the front MacPherson + rear multi-link suspension combination, in the cornering experience, its suspension support, coupled with a relatively clear steering wheel directionality, allows drivers to confidently go to the corner, with good stability, will not produce too much vehicle sideways.

7 Jan 2019

The T5 HEV is also equipped with intelligent driving aids that offer a lot of convenience, such as the L2 level automatic driving aid, which is convenient and safe. Features such as the automatic parking system, 360° panoramic image and transparent chassis also play a lot of roles.

Magna 7-speed Wet Dual Clutch Transmission

7 Jan 2019

● It is equipped with the same transmission as the new generation of Mercedes-Benz A-class and BMW X1.

● Excellent and solid chassis.

● High straight-line stability, fast turning response, less tire wear, and can balance maneuverability and comfort.

Mitsubishi 4A95TD 1.5T TD Gasoline Direct Injection

7 Jan 2019

● The world-renowned Mitsubishi 4A95TD engine

● 100km fuel consumption 6.6L

● Maximum power 145kw

● Peak torque 285N.m

Technical Parameters

T5HEV
	Model setting	T5 HEV description	Luxury ver.	Exclusive ver.
Engine	Driving mode	-	Front-mounted, front-wheel drive	Front-mounted, front-wheel drive
	Engine brand	-	DFLM	DFLM
	Engine type	-	4E15T	4E15T
	Displacement (L)	-	1.493	1.493
	Intake mode	-	Supercharged intercooling	Supercharged intercooling
	Rated power (kW)	-	125	125
	Rated power speed (rpm)	-	5500	5500
	Maximum torque (N.m)	-	280	280
	Maximum torque speed (rpm)	-	1500-3500	1500-3500
	Engine technology	-	Integrated exhaust manifold, dual vortex supercharger	Integrated exhaust manifold, dual vortex supercharger
	Fuel form	-	Gasoline	Gasoline
	Fuel oil label	-	Gasoline, 92# (inclusive) and above	Gasoline, 92# (inclusive) and above
	Oil supply mode	-	Cylinder direct injection	Cylinder direct injection
	Tank capacity (L)	-	55	55
Motor	Motor type	-	TZ220XYL	TZ220XYL
	Motor type	-	Permanent magnet/synchronous	Permanent magnet/synchronous
	Cooling pattern	-	Oil cooling	Oil cooling
	Peak power (kW)	-	130	130
	Rated power (kW)	-	55	55
	Maximum motor speed (rpm)	-	16000	16000
	Peak torque (N.m)	-	300	300
	Dynamic type	-	hybrid	hybrid
	Principal reduction ratio	-	11.734	11.734
	Braking energy recovery system	-	●	●
	Multistage energy recovery system	-	●	●
	Power battery material	-	Ternary lithium ion	Ternary lithium ion
	Cooling pattern	-	Liquid cooling	Liquid cooling
	Rated battery voltage (V)	-	349	349
	Battery capacity (kwh)	-	2.0	2.0
	Transmission type	-	Fixed tooth ratio	Fixed tooth ratio
	Number of gears	-	1	1
Vwhicle Body	Body top	-	The top of the car (Sun-roof)	The top of the car (Sun-roof)
	Number of doors	-	5	5
	Number of seats	-	5	5
Chassis	Front suspension type	-	McPherson type independent suspension + lateral stabilizer bar	McPherson type independent suspension + lateral stabilizer bar
	Rear suspension type	-	Multi-link type independent rear suspension	Multi-link type independent rear suspension
	Steering gear	-	Electric steering	Electric steering
	Front wheel brake	-	Ventilated disk type	Ventilated disc type (with red calipers)
	Rear wheel brake	-	Disc	Disk type (with red calipers)
	Parking brake type	-	Electronic Parking	Electronic Parking
	Electric booster brake	-	Electronic assisted braking	Electronic assisted braking
	Tire brand	-	Common brand	Common brand
	Tyre specification	(Tire with E-MARK logo)	235/55 R19	235/55 R19
	Spare gauge	No spare tire, with repair kit	●	●
Security Equipment	Driver's seat airbag	-	●	●
	Passenger airbag	-	●	●
	Front head air curtain	-	×	●
	Rear head air curtain	-	×	●
	Front side air bag	-	●	●
	Front seat belt	Three-point type (with E-MARK logo), recommended color and fuel separation, depending on the shape	●	●
	Second row seat belt	Three-point type (with E-MARK logo), recommended color and fuel separation, depending on the shape	●	●
	Buzzer alarm or indicator for not attach main seat belt	-	●	●
	Passenger seat belt not fastened buzzer alarm	-	●	●
	Status sensing function of the passenger seat	-	●	●
	Second row seatbelt not attached alarm	-	●	●
	Front and rear seat belt pre-tightening function	-	●	●
	Front and rear seat belt force limiting function	-	●	●
	Front seat belt high adjuster	-	●	●
	Engine electronic anti-theft	-	×	×
	Vehicle controller electronic anti-theft	-	●	●
	Approaching Vehicle Warning Pedestrian Safety System (VSP)	-	●	●
	Car central control lock	-	●	●
	Automatic locking	-	●	●
	Automatically unlocked after collision	-	●	●
	Child safety door lock	Manual type	●	●
	ABS anti-lock	-	●	●
	Braking Force Distribution (EBD/CBD)	-	●	●
	Brake priority	-	●	●
	Brake assist (HBA/EBA/BA, etc.)	-	●	●
	Traction control (ASR/TCS/TRC etc.)	-	●	●
	Body stability control (ESP/DSC/VSC, etc.)	-	●	●
	Uphill aid	-	●	●
	Automatic parking	-	●	●
	Tire pressure monitoring device	Direct type, can display tire pressure	●	●
	ISO FIX Child seat fasteners	-	●	●
	High brake light	LED (with E-MARK identification)	●	●
	Astern radar	homochromy	●	●
	Astern image	With dynamic trajectory, SD image	●	×
	Astern image	With dynamic track, HD video	×	●
	Door lock core	Left front door lock	●	●
	Descend gently on a steep slope	-	●	●

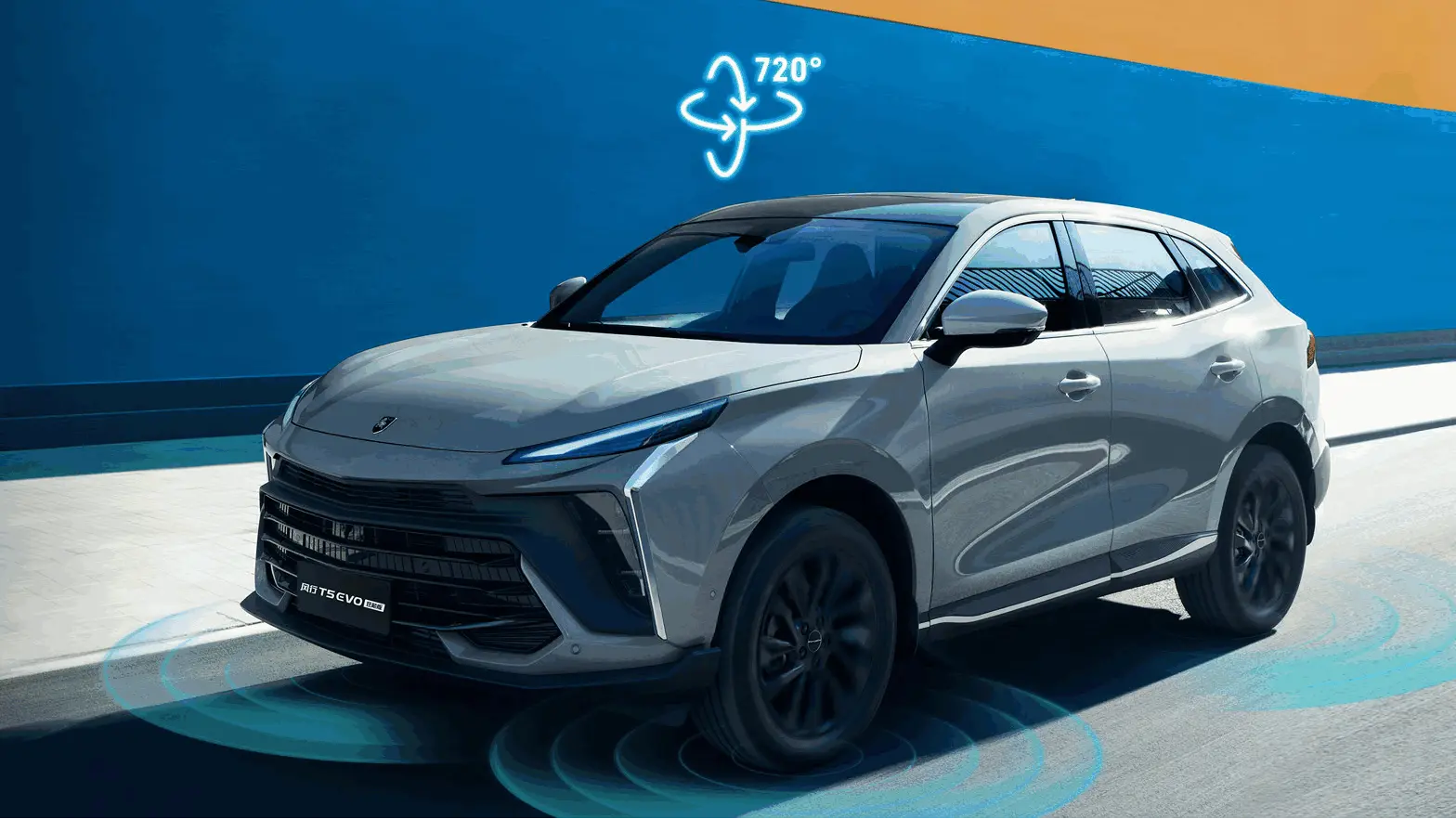

	360-degree panoramic camera	-	×	●
	Constant cruising	-	●	●
	Lane Departure Reminder (LDW)	-	×	●
	Front Collision Warning (FCW)	-	×	●
	Adaptive near and far light	-	×	●
	Open door Warning function (DOW)	-	×	●
	Reverse Side Warning (RCTA)	-	×	●
	Lane Change Assistance (LCA)	-	×	●
	Blind Spot Monitoring (BSD)	-	×	●
	Driver fatigue monitoring	-	●	●
		leather	●	●
	Multi-functional steering wheel	-	●	●
	Steering wheel sound control	-	●	●
	Steering wheel instrument control	-	●	●
	Steering wheel Bluetooth	(No voice control)	●	●
	Steering wheel up and down adjustment	-	●	●
	Steering wheel front and rear adjustment	-	●	●

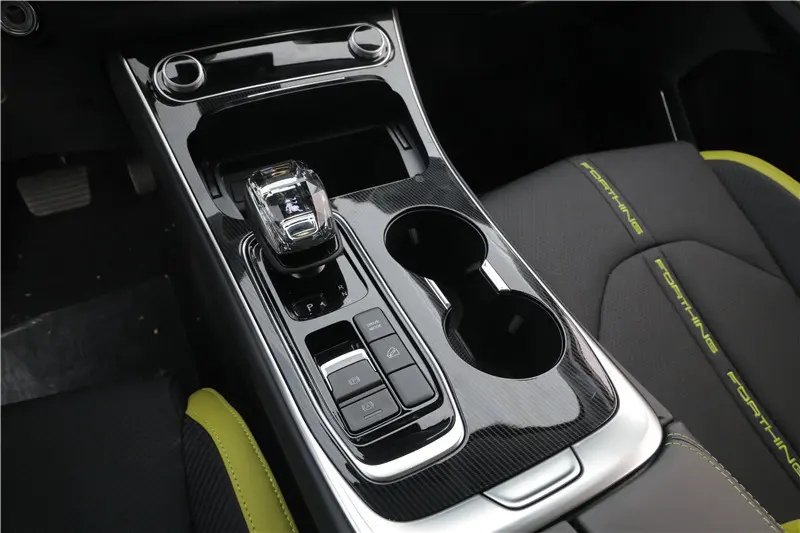

	Shift handle material	Using the T5HEV shifting ball head, transparent material, the default dark blue breath flashes after opening the door	●	●
	Electronic gear shift	-	●	●
	Pattern selection	Driving mode selection: Economy/normal/sport 3	●	●
Comfort configuration	Car gauge 95 standard filter	The filtration efficiency of 0.3um particles is not less than 95%	●	●
	Front air conditioner	-	●	●
		Automatic air conditioning	●	●
	Front outlet	Tape switch	●	●
	Backseat air outlet	Tape switch	●	●
	Rear blow foot outlet	-	×	●
	PM 2.5 Air purification system	Includes PM2.5 sensor + negative ion generator +AQS, intelligent detection and purification of air	×	●

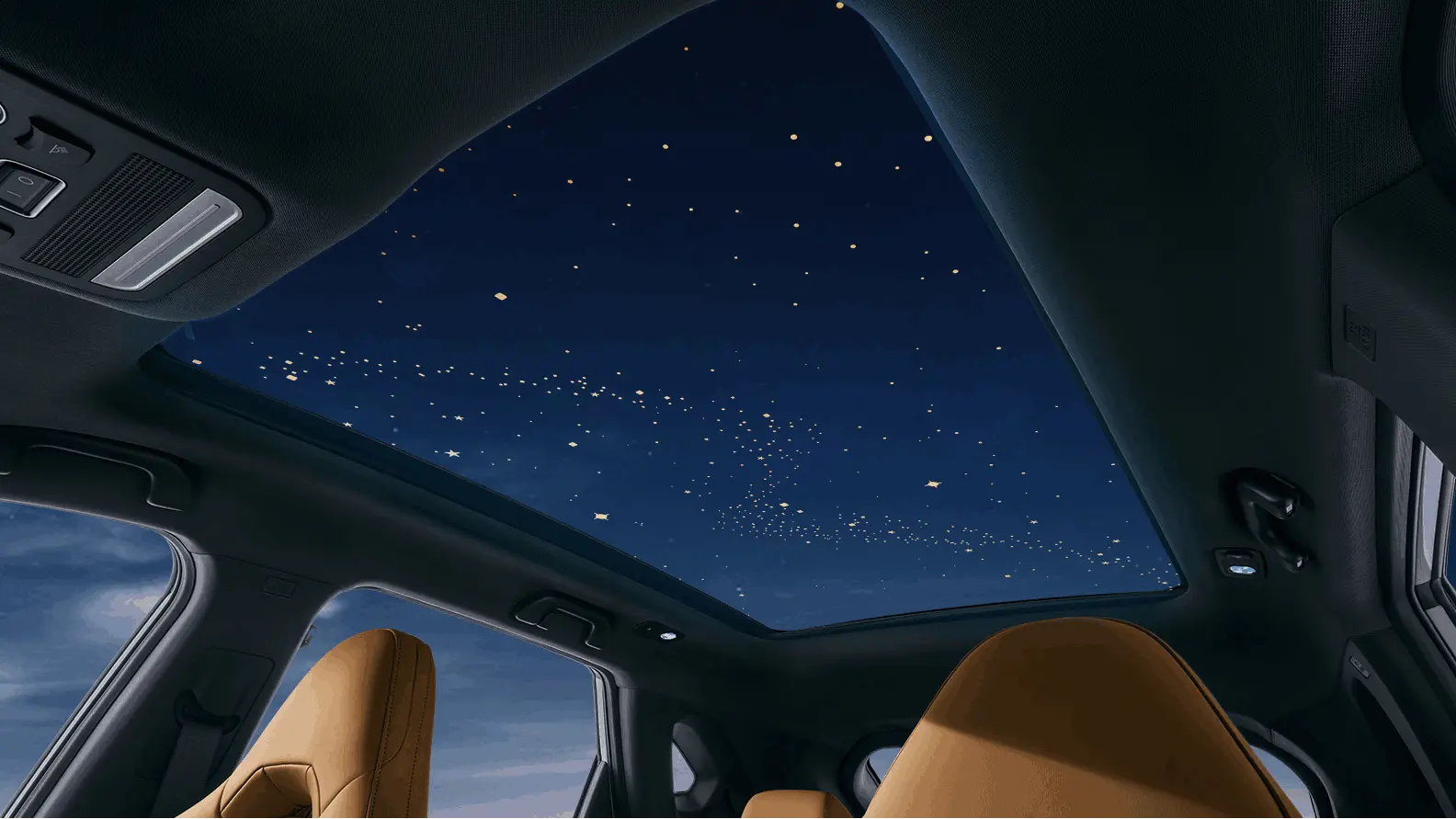

	canopy	Borrowed from SX5G	●	● (with Sun Roof)
Convenience equipment	key	Common key	●	●
	key	Smart key	●	●
	Start the system with one click	Newly designed, within a certain period of time dark blue light breathing light when opened the door, enhance the sense of science and technology	●	●
	Keyless access system	Borrowed SX5G year, inductive, main drive	●	●
	Front window wiper	Boneless wipers	●	●
	Front window wiper	Induction wiper	×	●
	Wiper lever	Intermittent adjustable wiper lever	●	×
	Wiper lever	Adjustable sensitivity wiper lever	×	●
	Rear wiper	-	●	●
	Hot wire for rear window	-	●	●
	Rearview mirror electric adjustment	With the E-MARK identifier	●	●
	Rearview mirror heating	-	●	●
	Rearview mirror lock auto folding	-	●	●
	External rearview mirror memory	-	×	●
	External rearview mirror reverse memory aid	-	×	●
	Inside rear-view mirror to prevent glare	Manual (with E-MARK identification)	●	●
	Front power window	-	●	●
	Power rear window	-	●	●
	Window anti-clamping function	-	●	●
	One click to raise/close the window	-	●	●
	Remote control window opening and closing	-	●	●
	Automatic window closing mode in rainy days	-	×	●
	Glasses case	-	●	●
	Central storage box	-	●	●
	Dashboard phone stand mounting port	Must be able to mount most of the mobile phone holders on the market	●	●
	Dashboard hook	single	●	●
	Rear case shelf	roll-up	●	●
	5V USB charging port	Single insert, one next to the rear air outlet, one through the front storage space of the sub-instrument platform	●	●
	12V power supply	Cigarette lighter position	●	●
	Power tailgate	-	●	●
	Induction tailgate	-	×	●
Light	Headlamp	Halogen headlights (with E-MARK logo)	●	×

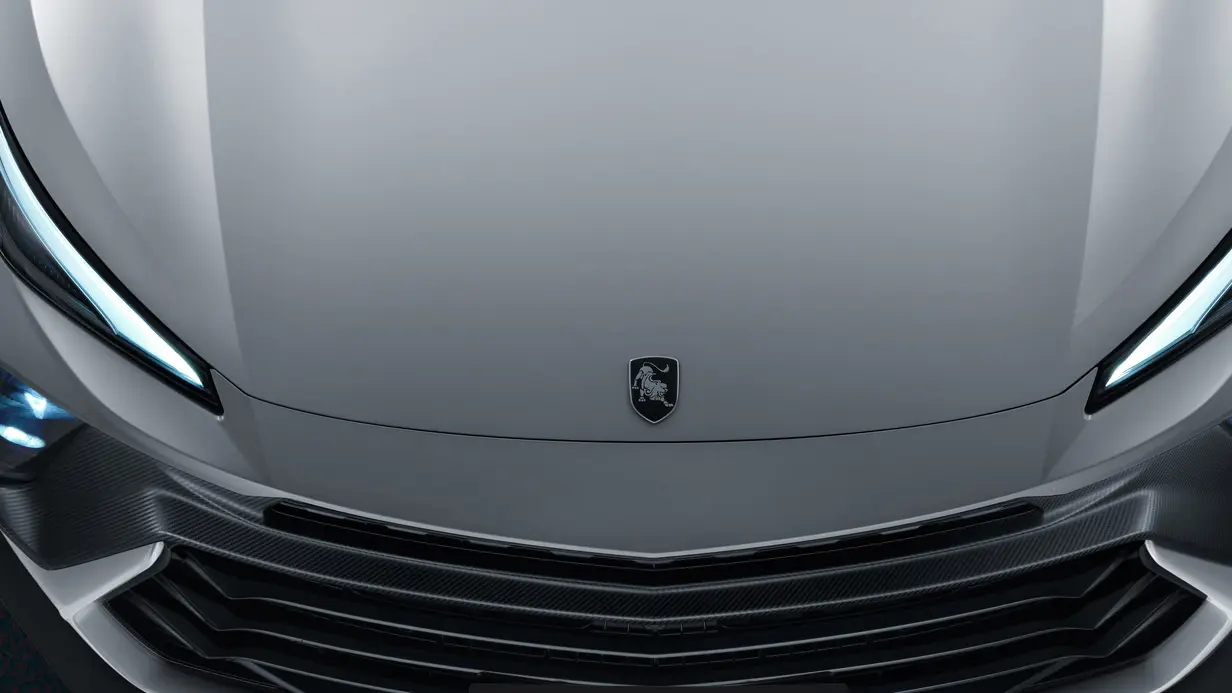

	Headlamp	LED headlights (with E-MARK logo)	×	●
	Automatic lighting	-	●	●
	LED daytime running lights	With the E-MARK identifier	●	●
	Headlights off delayed	-	●	●
	Headlight height adjustable	Electric regulation	●	●
		LED (B light position light can be lit, water turn signal) (with E-MARK identification)	●	●
	Outside rearview mirror welcome light	Borrowed from SX5G	×	●
	Key backlight	red	●	●
	Interior ambient light	When you open the door, the ambient light breathes	×	●
	The room lights go off late	-	●	●
	Car front light	No skylight control	●	●
	Side box light	Borrow SX5G side light (milky white lamp shade)	●	●
	Automatic trunk lights on	-	●	●
	Tailgate license plate light	With the E-MARK identifier	●	●
	Active intake grille	-	●	●
	Lower engine compartment fender	-	●	●
	Under hood heat pad	-	●	●
	Hood air strut	-	●	●
	Aluminium alloy wheel hub	T5HEV newly opened, technology to reduce consumption of large wheels	●	●
	Front/rear wheel mud cover	-	●	●
	Front/rear fender	-	●	●
	empennage	-	●	●
	Exterior trim panel	-	●	●
	Logo	Added HEV identification to the left front fender and rear tail door	●	●
Internal configuration	trim	Borrow SX5G medium change (subject to modeling)	●	●
	Instrument desk	Partial softness	●	●
	Sub-instrument panel	New top trim (combined with the new shift ball head, considering the gear layout), and CMF material upgrade	●	●
	Door guard	Borrow SX5G medium change (subject to modeling)	●	●
	Sill guard	-	●	●
	Driver's seat sun visor	No lights with makeup mirror, PVC material	●	×
	Driver's seat sun visor	With LED lights and makeup mirror, PVC material, borrow SX5G in the change	×	●
	Passenger seat visor	No lights with makeup mirror, PVC material	●	×
	Passenger seat visor	With LED lights and makeup mirror, PVC material, borrow SX5G in the change	×	●
	Carpet	-	●	●
	Left foot rest pedal	-	●	●
	Skylight shade	-	●	●
	Passenger and rear seat roof safety handles	Gradual rise	●	●
	Clothes hook	1, rear right handle with hook	●	●
		Knitted fabric	●	●
	Ceiling color	Visual modeling	●	●
	Engine compartment trim cover	Semi-covering (the bare part of the cable should be regular)	●	●
	Engine trim cover	-	●	●
	Environmentally friendly antibacterial material		●	●
multimedia	USB external audio source interface	1, with charging function, storage space in front of sub-instrument panel	●	●
	Audio format support	-	●	●
	Audio playback	-	●	●
	Video playback	-	●	●
	Traffic recorder	-	×	●
	Mobile Internet	-	●	●
	WIFI function	The luxury type is realized through mobile phone interconnection, and the privileged type, the distinguished type and the flagship type are realized through the Internet of vehicles	●	●
	Bluetooth system	-	●	●

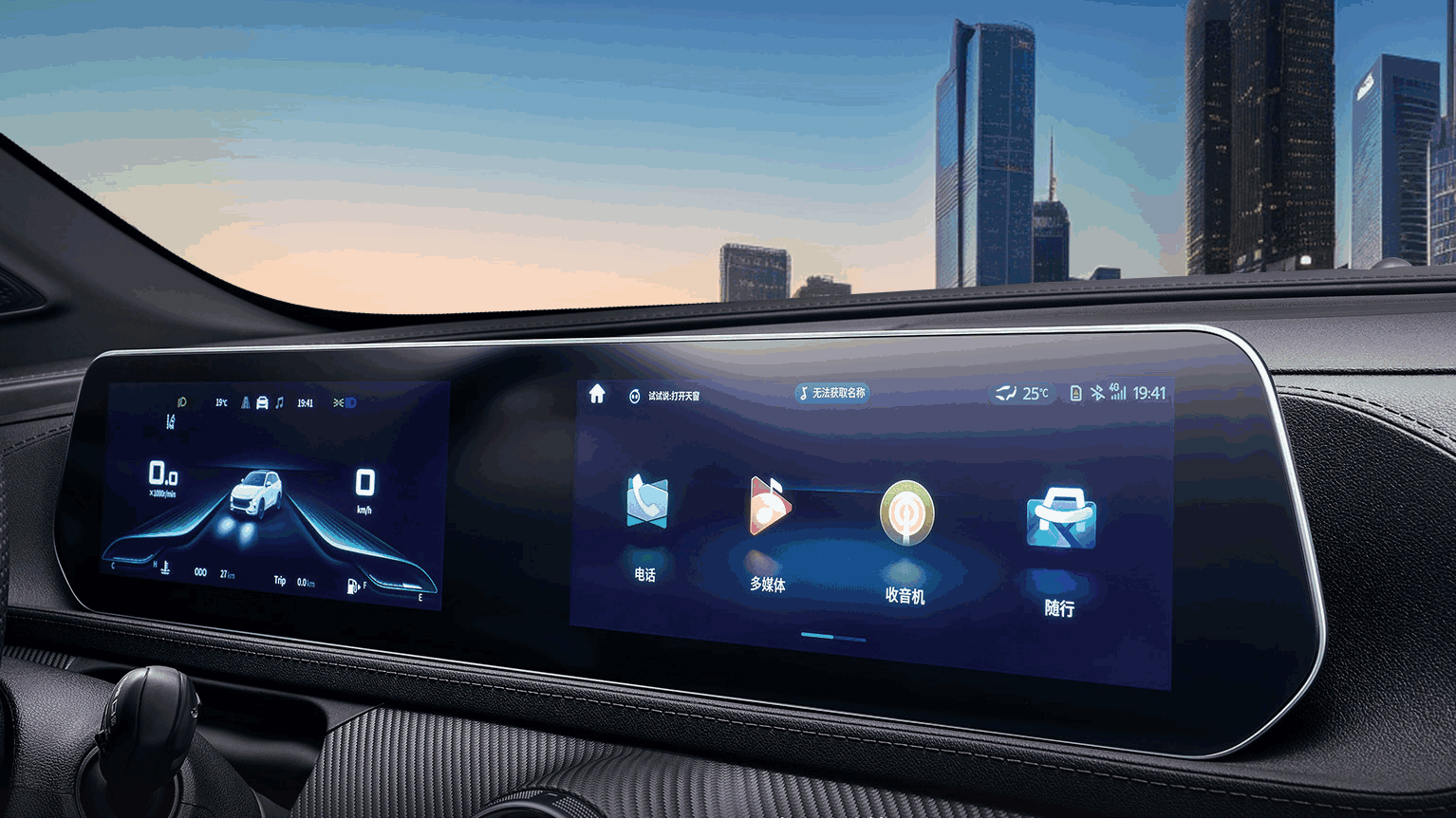

		Left (10.25 inch LCD) : 1. Increase the development of EV mode status display; 2, display hybrid system power switching content, the content is intuitive and easy to read 3, icon display (overseas version)	●	●
		Hd 10.25-inch LCD screen	● English, Spanish, French, Persian, Arabic interface	● English, Spanish, French, Persian, Arabic
	Speaker brand	General brand (High quality audio + speakers)	●	●
		six	●	●
		Integrated sports color seat, borrowed from SX5G (specific modeling shall be subject to)	●	●
		PU	●	●
	Seating structure (5 seats)	-	●	●
		Electric adjustment, 8-way, seat up and down, forward and backward, backrest and waist forward and back; It has the function of convenient boarding and unloading	●	×
		Electric adjustment, 10-way, seat up and down forward and back, backrest forward and back, waist up and down forward and back adjustment, with convenient on and off the car function	×	●
		Power seat memory	×	●
		Seat rear end hook (1)	●	●
		Seat ventilation	×	●
		Seat heating	●	●
		Chair massage	×	●
		Seat back storage bag	●	●
		Electric adjustment, 4-way, seat front and back, back forward and back	●	●
		BOSS button (The rear can easily adjust the front and back of the passenger seat cushion/backrest to improve riding comfort)	●	●
		Rear seat hooks	●	●
		Seat heating	●	●
		Seat back storage bag	●	●
	Second row seat	Adjustable headrest	●	●
		The seat is placed in proportion (6/4 backrest, 6/4 cushion) and the cushion is turned over	●	●

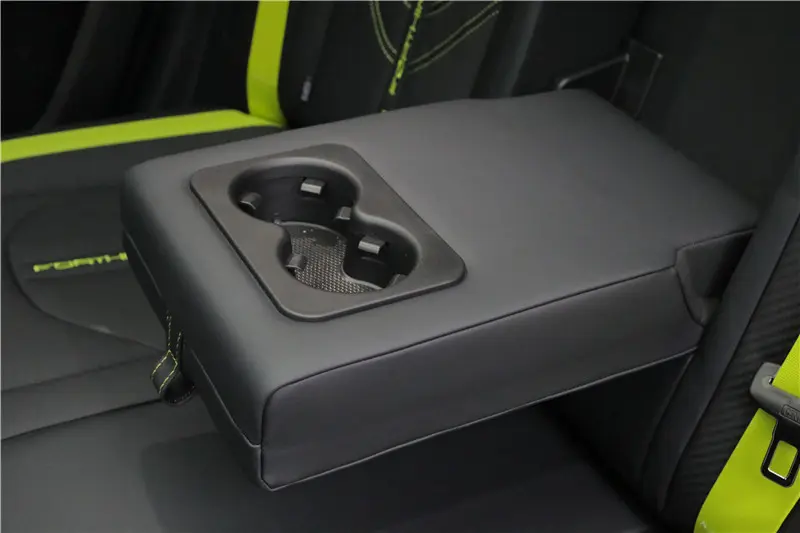

		Seat center armrest (with cup holder)	●	●
